Russ Nickel Alloys is a leading provider of high-quality Niobium Sheets and Plates in Manila, Philippines. Renowned for their exceptional properties, Niobium Sheets and Plates are highly valued in industries such as aerospace, medical, and chemical processing. These materials offer excellent corrosion resistance, high melting points, and superior strength, making them ideal for applications like jet engine components, medical implants, and chemical storage equipment. With a commitment to delivering reliable and durable alloy solutions, these Niobium products are tailored to meet diverse industrial needs, ensuring optimal performance in challenging environments and maintaining the highest standards of quality and precision.
Russ Nickel Alloys stands out as a top-notch manufacturer and supplier of niobium sheets and plates right in the heart of Manila, Philippines. With a strong focus on quality and precision, they provide high-purity niobium products that cater to the demanding needs of advanced industries. Their niobium sheets and plates are crafted using cutting-edge technology, ensuring a superior surface finish, tight dimensional tolerances, and impressive mechanical properties. Whether it’s electronics, aerospace, medical, or chemical processing, Russ Nickel Alloys has earned a reputation as a reliable source for premium niobium materials in Manila and beyond.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

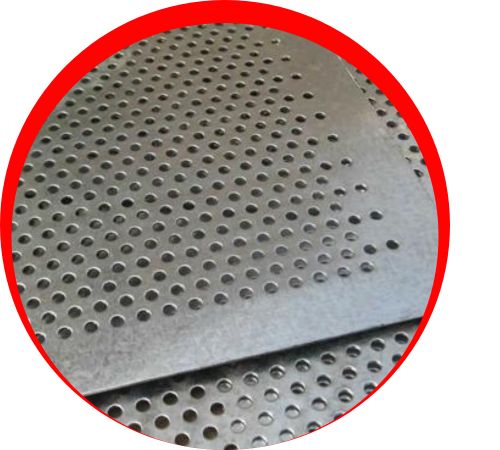

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |

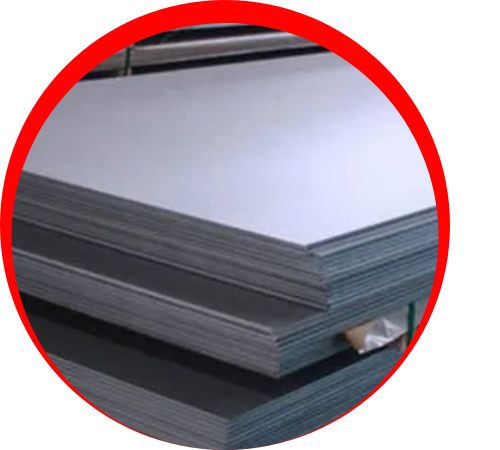

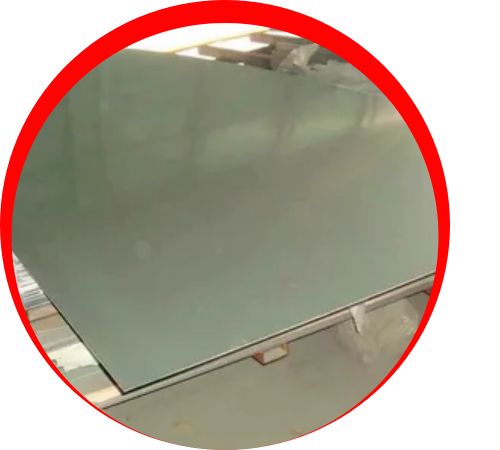

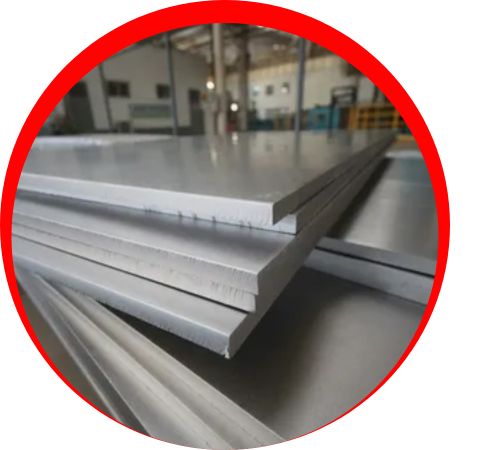

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
The niobium sheets and plates from Russ Nickel Alloys are crafted from high-purity niobium metal, celebrated for its remarkable corrosion resistance, high melting point, and excellent formability. On the mechanical side, niobium boasts good ductility and strength, even when the heat is on. Its non-reactive nature and stability make it a go-to choice for high-performance applications in challenging chemical environments. Plus, these sheets and plates are biocompatible and easy to fabricate, making them perfect for both industrial and medical applications.
Contact us to get a quick quote for your requirement.
Russ Nickel Alloys’ niobium sheets and plates find their way into a range of critical applications, from superconducting materials and particle accelerators to chemical processing equipment and medical implants. In the aerospace sector, niobium is prized for its performance in high-temperature settings, while in electronics, it’s utilized in capacitor-grade materials and superconductors. Its biocompatibility also makes it a great fit for surgical implants and medical devices. Russ Nickel Alloys is committed to manufacturing every niobium sheet and plate to the highest standards, ensuring reliability and consistent quality for customers in Manila and specialized global markets.
