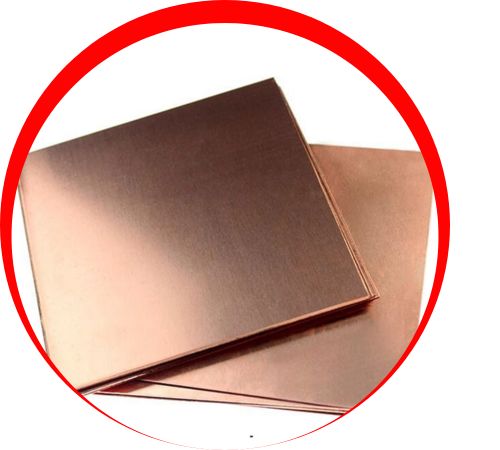

Russ Nickel Alloys, located in Manila, Philippines, is a reliable manufacturer and supplier of top-notch metal products, including Copper Nickel Sheets and Plates. Renowned for their precision, strength, and durability, the company produces sheets and plates that adhere to international standards for corrosion resistance and mechanical performance. The Copper Nickel Sheets and Plates from Russ Nickel Alloys are designed to provide long-lasting reliability in tough industrial and marine settings. Perfect for piping systems, heat exchangers, and structural applications, these products boast an excellent surface finish, consistent thickness, and outstanding corrosion resistance, ensuring efficiency and safety in every project.
Copper Nickel Sheets and Plates are crafted from copper-nickel alloys, usually in 70/30 or 90/10 ratios, which offer remarkable resistance to seawater corrosion, erosion, and biofouling. They possess high tensile strength, durability, and good ductility, maintaining their mechanical integrity even under high pressure and temperature conditions. These sheets and plates also deliver excellent thermal conductivity, corrosion resistance, and workability, making them ideal for fabricating components that require both strength and reliability in marine, offshore, and industrial applications.
| Specifications | ASTM B171, B122 / ASME SB171, SB122 |
| Standards | ASTM, ASME and API |
| Size | 1 mm to 100 mm |

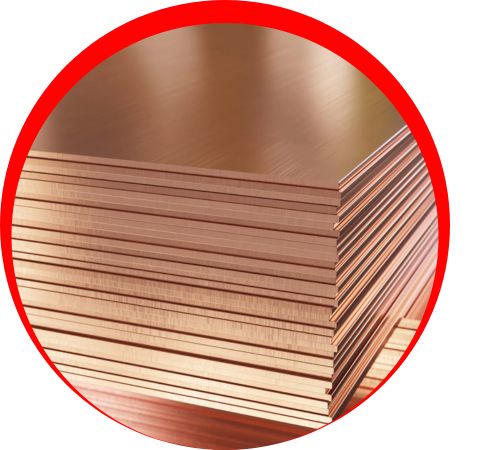

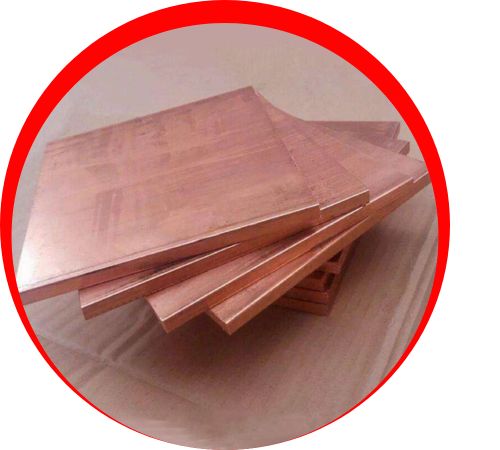

| Finishing | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

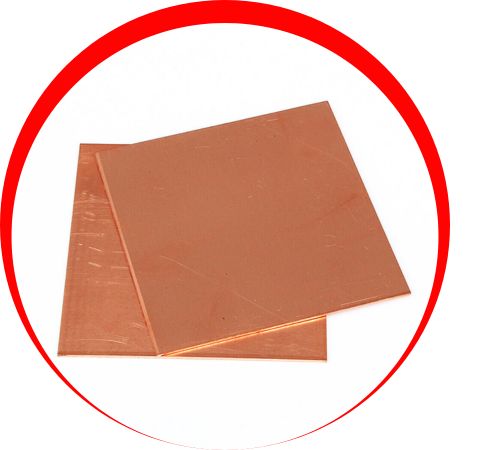

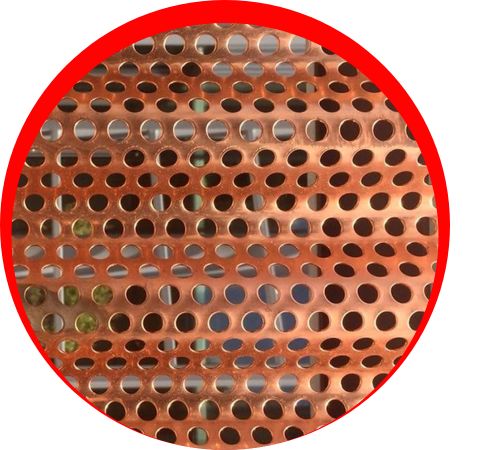

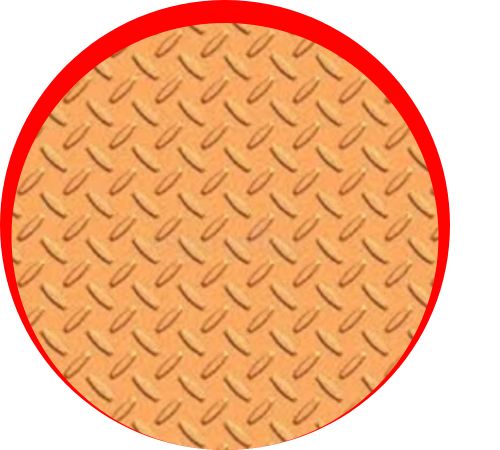

| Form | Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray, Roll Etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | UNS NO. C92200 & UNS NO. C83600, UNS NO. C70600 ( CU -NI- 90/10), C71500 ( CU -NI- 70/30), UNS NO C10100, C10200, C10300, C10800, C12000, C12200. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cupro Nickel | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Element | Copper Nickel 90/10 |
|---|---|
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi – 35,000, MPa – 241 |
| Elongation | 30 % |
At Russ Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Sheet and Plates in Manila, Philippines, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Philippines, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Copper Nickel Sheets and Plates find extensive use in industries that demand corrosion resistance, strength, and long-lasting durability. They are commonly utilized in marine and offshore piping systems, heat exchangers, condenser plates, desalination plants, and chemical processing equipment. Additionally, these products are employed in industrial machinery, structural components, and applications exposed to seawater or harsh chemical environments. The Copper Nickel Sheets and Plates from Russ Nickel Alloys guarantee dependable performance, safety, and efficiency in challenging projects. Their blend of strength, corrosion resistance, and workability makes them a top choice for demanding applications.
