Home > Nickel Alloys > AWS Class ERNiFeCr-1 MIG and TIG Filler Welding Wire and Rod
Russ Nickel Alloys, a leading manufacturer and supplier in Manila, Philippines, offers AWS Class ERNiFeCr-1 MIG and TIG Filler Welding Wire and Rod, designed for superior performance in demanding applications. This high-quality filler wire and rod is ideal for welding nickel-iron-chromium alloys, ensuring exceptional strength and corrosion resistance. Trusted by professionals across various industries, Russ Nickel Alloys is committed to providing reliable welding solutions that meet the stringent requirements of modern engineering projects.
Russ Nickel Alloys, located in Manila, Philippines, is a trusted name in the manufacturing and supply of top-notch welding consumables. They specialize in AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod. With a strong focus on quality, precision, and durability, this company serves a diverse array of industries that need reliable welding solutions for high-temperature and corrosion-resistant applications. Russ Nickel Alloys takes pride in delivering expertly crafted filler materials that adhere to international standards, making them a go-to partner for welding professionals in fields like aerospace, power generation, chemical processing, and marine engineering throughout the Philippines and beyond.
| Classification | AWS A5.14, ERNiFeCr-1 |

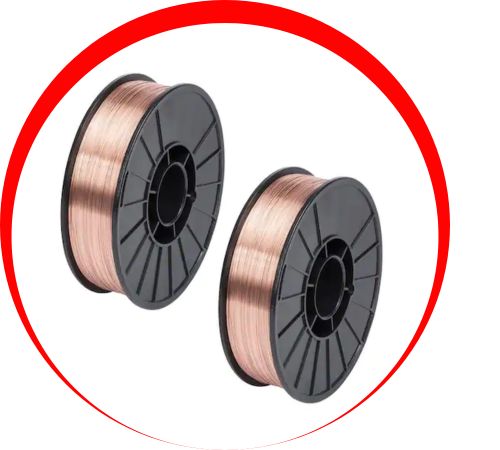

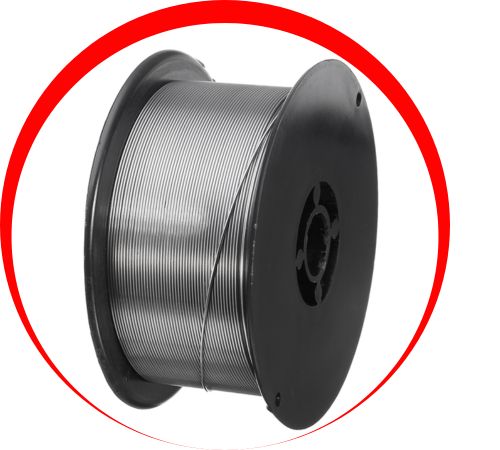

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |

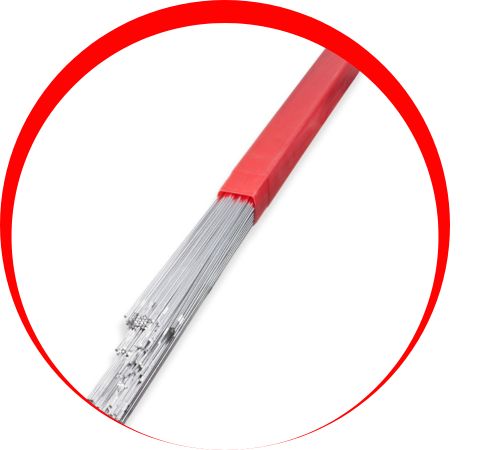

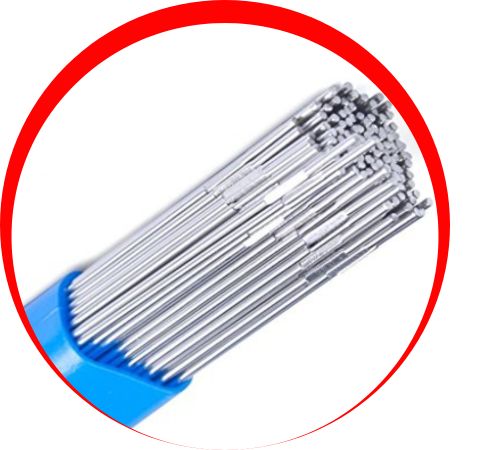

| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERNiFeCr-1 MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | Cr | S | P | Ni | Fe | Cu | Al | Mo | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ≤0.05 | ≤1 | ≤0.5 | 19.5-23.5 | ≤0.03 | ≤0.03 | 38-46 | ≥22 | 1.5-3.0 | ≤0.2 | 2.5-3.5 | 0.6-1.2 |
| Tensile Strength MPa(ksi) | Yield Strength MPa(ksi) | Elongation % | |
|---|---|---|---|
| AWS requirement | 550(80) | Not specified | Not specified |
| Typical results as welded | 550(80) | – | 25 |
The AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod are primarily made of nickel (Ni), with notable amounts of chromium (Cr) at 20–23%, cobalt (Co) at 10–15%, and molybdenum (Mo) at 8–10%. This well-thought-out composition provides exceptional mechanical strength, with typical tensile strength hitting 760 MPa (110 ksi) and an elongation of about 30%. Designed for outstanding high-temperature stability, corrosion resistance, and weldability, this alloy is perfect for tough environments. Its performance ensures structural integrity even under extreme thermal conditions, offering a long service life in critical industrial applications.
Contact us to get a quick quote for your requirement.
These AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod are commonly used for welding nickel-based alloys like Alloy 617 and other high-temperature materials. They play a vital role in industries that demand excellent resistance to oxidation, carburization, and corrosion, especially at temperatures above 1000°C. Typical applications include gas turbines, heat exchangers, furnace components, reformer tubes, and pressure vessels in power plants, petrochemical facilities, and aerospace settings. Their remarkable metallurgical properties and reliability under intense stress make them a preferred choice for both fabrication and repair.
