Russ Nickel Alloys, based in Manila, Philippines, is a well-respected manufacturer and supplier of top-notch welding consumables, including the AWS Class ERCuNi MIG and TIG filler welding wire and rod. Renowned for their reliability and technical expertise, Russ Nickel Alloys caters to industries that require high-quality materials with outstanding corrosion resistance and mechanical strength. Their ERCuNi filler wires and rods are crafted to meet international standards, ensuring superior weld performance for applications in marine, chemical, and power sectors where durability and resistance to harsh conditions are crucial.
AWS Class ERCuNi is a copper-nickel alloy filler metal that primarily consists of copper (around 70%) and nickel (about 30%), with trace amounts of iron and manganese to boost strength and corrosion resistance. This alloy is known for its exceptional resistance to seawater corrosion, erosion, and biofouling, while also offering solid mechanical properties. It boasts high ductility, tensile strength, and toughness, maintaining stability in both high-temperature and cryogenic environments. The balanced composition of ERCuNi guarantees reliable weld integrity, even in challenging thermal and corrosive conditions.
| Classification | AWS A5.14, ERCuNi |

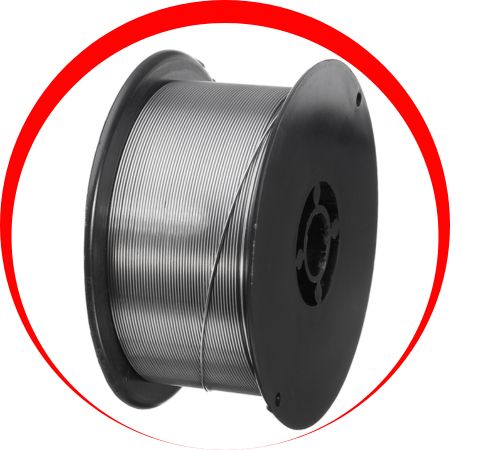

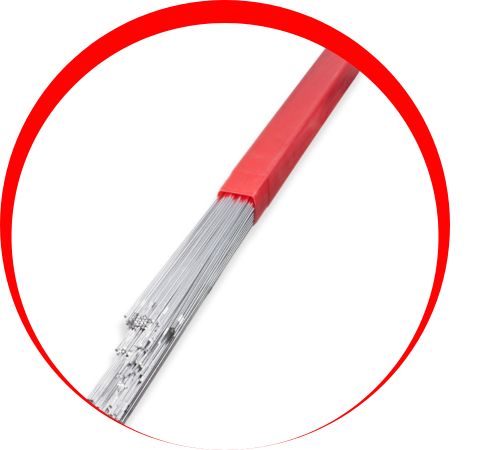

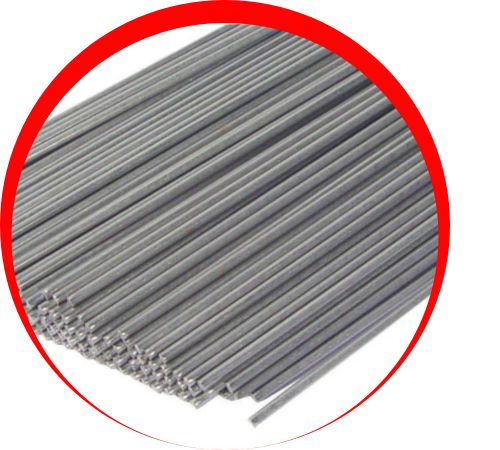

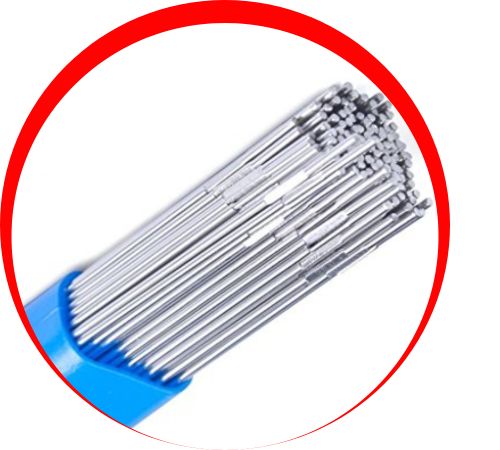

| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ERCuNi MIG & TIG Filler Metal Application & uses |
|
| Fe | Pb | Mn | P | Si | Ti | Ni +Co | Cu +Ag |
| 0.59 | 0.001 | 0.69 | 0.001 | 0.07 | 0.30 | 30.3 | Balance |
| Tensile Strength MPa(ksi) | Yield Strength MPa(ksi) | Elongation % | |
|---|---|---|---|
| Typical results as welded | 54,000 psi | 21,500 psi | 32% |
At Russ Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of AWS Class ERCuNi MIG and TIG Filler Welding Wire and Rod in Manila, Philippines, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Philippines, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
AWS Class ERCuNi MIG and TIG filler welding wire and rod are commonly utilized in marine, offshore, and chemical processing applications. They are perfect for welding 70/30 copper-nickel alloys, joining copper-nickel to themselves or to steels, and fabricating heat exchangers, condensers, seawater piping, and desalination equipment. The alloy’s remarkable resistance to seawater and brine environments makes it a go-to choice for shipbuilding and offshore oil platforms. ERCuNi delivers strong, corrosion-resistant welds that perform consistently in aggressive, saline, and high-moisture operating conditions.
