Based in Manila, Philippines, Russ Nickel Alloys is the leading manufacturer of nickel alloy Copper Nickel 90/10 Flanges, known for its high quality and reliability Catering to the marine oil and gas industries Russ Nickel. The alloy specializes in flanges that offer exceptional resistance to seawater corrosion and bio-odor Their Copper Nickel 90/10 Flanges are engineered to meet exacting industry standards, ensuring excellent performance and durability in environments strong Russ Nickel Alloys High quality copper nickels for critical applications. the 90/10 flange is the preferred partner.
Russ Nickel Alloys, located in Manila, Philippines, stands out as a dependable manufacturer and supplier of top-notch welding consumables. Their offerings include the AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod. With a strong focus on quality, precision, and durability, the company serves a diverse array of industries that need exceptional welding solutions for high-temperature and corrosion-resistant applications. Russ Nickel Alloys takes pride in delivering expertly crafted filler materials that adhere to international standards, making them a go-to partner for welding professionals in fields like aerospace, power generation, chemical processing, and marine engineering throughout the Philippines and beyond.
| Specification List | Copper Nickel 90/10 Flanges |
|---|---|
| Face Type | Raised Face (RF) Flat Face (FF) Ring Type Joint (RTJ) |

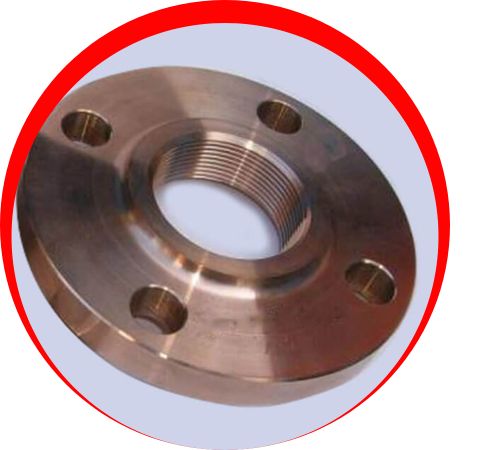

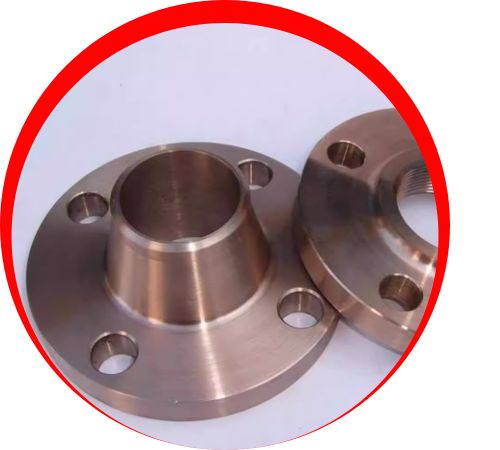

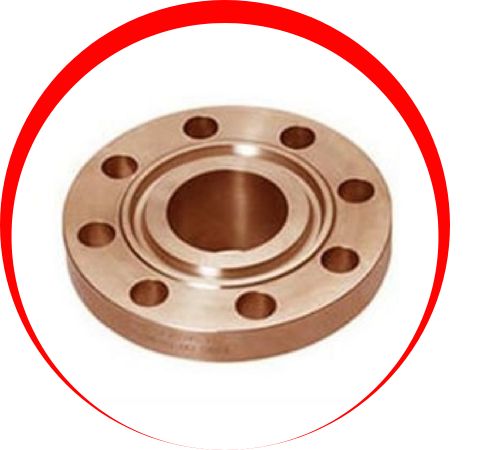

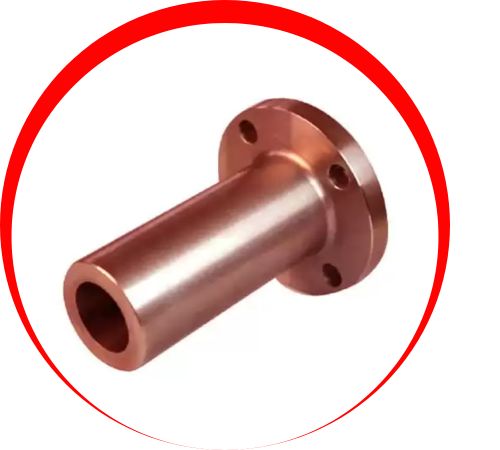

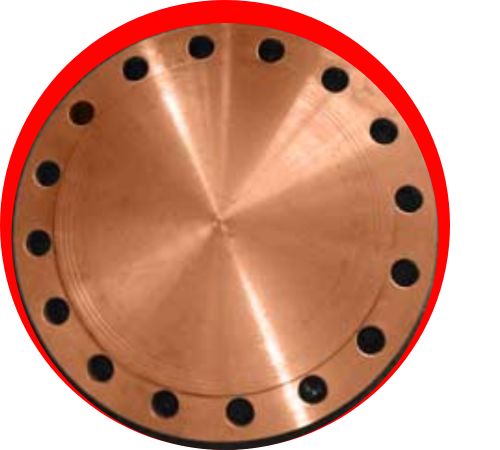

| Types | Threaded/ Socket Weld/ Blind/ Slip On/ Reducing/ Weld Neck/ Lap Joint |
| Size Range | NPS 1⁄₂” Inch To NPS 48” Inch |
| Thickness | SCH 5S To SCH 180. |
| Chemical Chart | Cu (88.6 min.), Ni (9-11 max), Mn (1.0 max), Pb (0.05 max) etc. |
| Related Specifications | CN102 C70600 C70610 CW352H DEF STAN 02-879 Annex C DEF STAN 02-779 NES 779 BS2870 BS2874 ASTM B151 EN 12163 2.0872 NF A51-115 CuNi10Fe1Mn |
| Pressure Class | Class 150 To Class 2500. |
| Standard & Dimensions | P235GH/ API/ EN 1092-2/ ISO/ PN/ DIN 2561/ DIN 2501/ JIS/ DIN 2527/ EN 1092-1/ |
| Forging Methods | Rolling/ Casting/ Cutting/ Forging |
| Grade | Fe | Zn | Cu | Mn | Pb | Ni |
| Copper Nickel 90/10 Flanges | 1.8 (max.) | 1 (max.) | 88.6 (min.) | 1.0 (max.) | .05 (max.) | 9-11 (max.) |
| Element | Tensile Strength | Density | Yield Strength (0.2%Offset) | Elongation | Melting Point |
| Copper Nickel 90/10 Flanges | 50000 psi | 0.323 lb/in3 at 68 F | 20000 psi | 30 % | 2260 F |
The AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod are primarily made of nickel (Ni), with notable amounts of chromium (Cr) at 20–23%, cobalt (Co) at 10–15%, and molybdenum (Mo) at 8–10%. This thoughtfully designed composition provides remarkable mechanical strength, with typical tensile strength hitting 760 MPa (110 ksi) and an elongation of about 30%. The alloy is specifically engineered for outstanding high-temperature stability, corrosion resistance, and weldability, making it perfect for challenging environments. Its performance characteristics ensure structural integrity even under extreme thermal conditions, offering a long service life in critical industrial applications.
Contact us to get a quick quote for your requirement.
The AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod are commonly utilized for welding nickel-based alloys like Alloy 617 and other high-temperature materials. These fillers are crucial in industries that demand excellent resistance to oxidation, carburization, and corrosion, particularly at temperatures above 1000°C. Typical applications include gas turbines, heat exchangers, furnace components, reformer tubes, and pressure vessels in power plants, petrochemical facilities, and aerospace settings. Their exceptional metallurgical properties and reliability under intense stress make them a favored choice for both fabrication and repair.
