Russ Nickel Alloys, located in Manila, Philippines, is a well-respected manufacturer and supplier of top-notch nickel-chromium alloy products. They specialize in Inconel 617 Forged Fittings, which are celebrated for their outstanding resistance to corrosion and remarkable mechanical strength, even at high temperatures. With a strong commitment to quality and precision, Russ Nickel Alloys ensures that their forged fittings comply with international standards, catering to industries that need robust and dependable connection components for tough and demanding environments. Their expertise means customers can trust that they’re getting Inconel 617 forged fittings designed for durability and safety.
Inconel 617 Forged Fittings are crafted from a nickel-chromium-cobalt-molybdenum alloy, which consists of about 52% nickel, 22% chromium, 13% cobalt, and 9% molybdenum. This unique blend provides excellent resistance to oxidation, carburization, and high-temperature corrosion, along with impressive creep and stress-rupture strength at temperatures reaching up to 2000°F (1093°C). These forged fittings maintain their mechanical integrity and dimensional stability, even in the face of extreme thermal and corrosive conditions.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

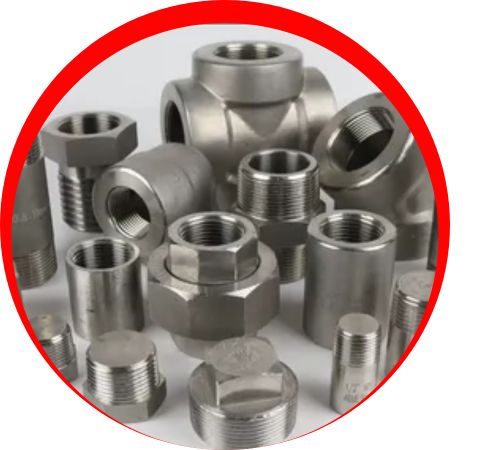

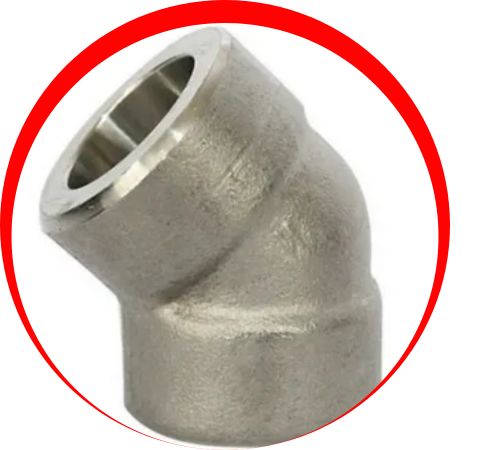

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

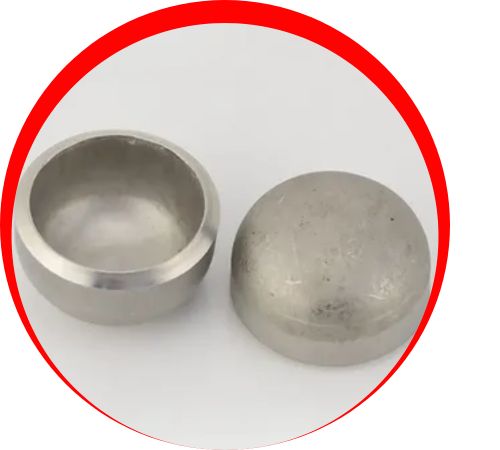

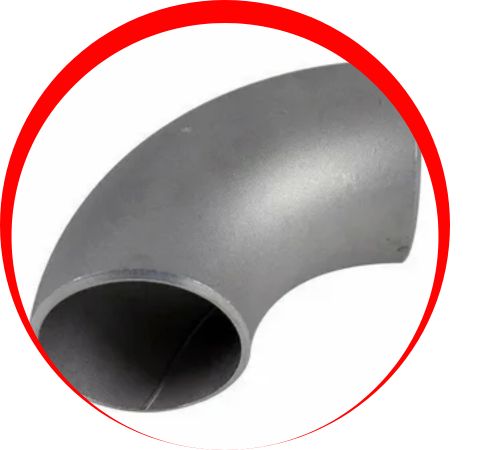

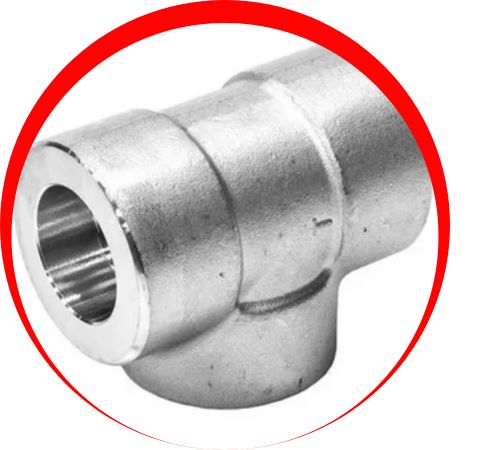

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Russ Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Manila, Philippines, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Philippines, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Inconel 617 Forged Fittings widely utilized in sectors like aerospace, chemical processing, power generation, and petrochemicals. They’re perfect for connecting pipelines and equipment that are subjected to intense temperatures and corrosive environments, such as reactors, heat exchangers, and furnace systems. The durability and corrosion resistance of these fittings ensure safety and reliability in critical industrial applications.
