Located in Manila, Philippines, Russ Nickel Alloys is a reputable manufacturer and supplier of top-notch alloy products, including Inconel 600 Bars. Crafted from a nickel-chromium alloy renowned for its exceptional corrosion resistance and high-temperature strength, these bars are designed to deliver durability and reliability in even the most demanding industrial settings. Russ Nickel Alloys prides itself on precision manufacturing and rigorous quality control, ensuring that their Inconel 600 Bars meet international standards for performance and consistency.
The composition of Inconel 600 Bars primarily includes nickel (72%), chromium (14–17%), and iron, along with trace amounts of carbon, manganese, and silicon. This unique blend provides remarkable resistance to oxidation, carburization, and corrosion across a variety of harsh environments, including both oxidizing and reducing atmospheres. These bars maintain their mechanical strength and dimensional stability at temperatures soaring up to 1150°C, making them perfect for extreme temperature applications.
| Specification | ASTM B166 UNS N06600, AMS 5665 |
|---|---|

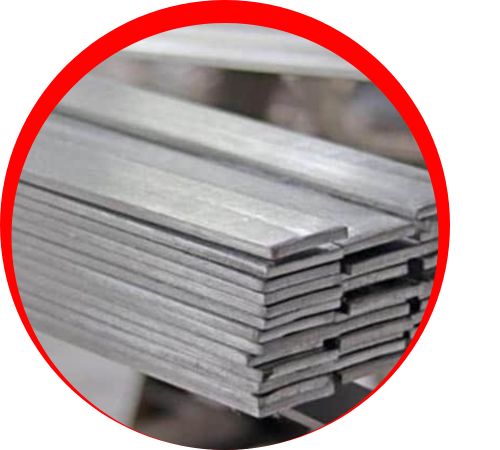

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

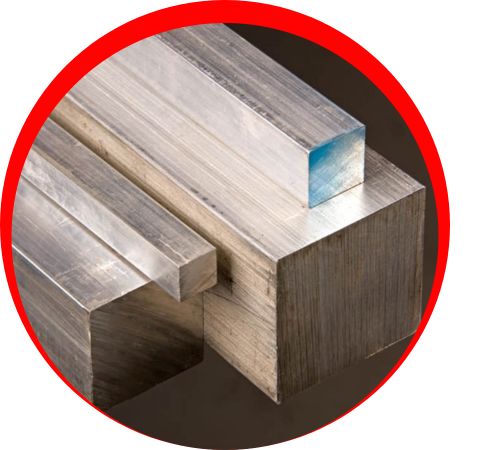

| Square bar size | 4 to 100mm |

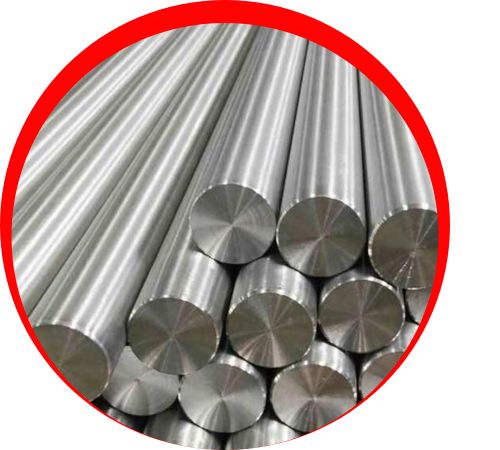

| Round bar size | Diameter: 3-~800mm |

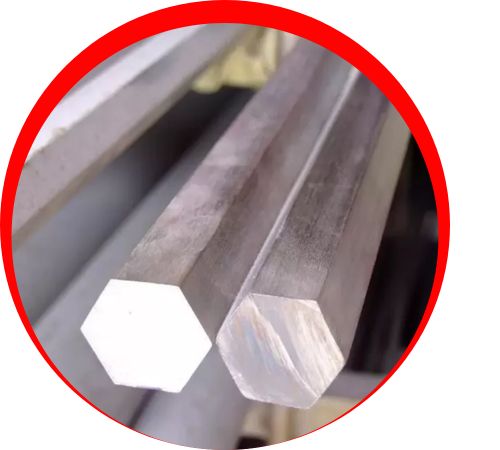

| Hex Bar size | 2-100mm A/F |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |

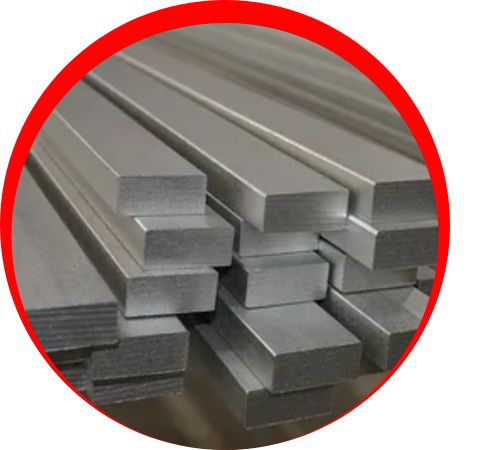

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Condition | Hardened & tempered, annealed |
| Technique | 600 Inconel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |

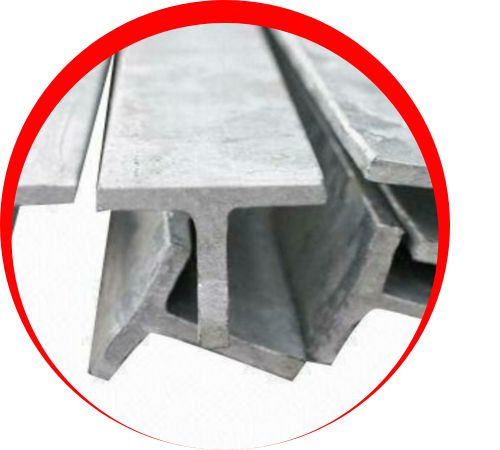

| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Russ Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Bars in Manila, Philippines, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Philippines, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 Bars find extensive use in industries such as aerospace, chemical processing, power generation, and nuclear energy. They are particularly well-suited for manufacturing turbine components, heat exchanger parts, furnace equipment, and reactor vessels that are subjected to severe corrosive and high-temperature conditions. Thanks to their superior corrosion resistance and thermal stability, Inconel 600 Bars promise a long service life and dependable performance in critical applications.
