The composition of Incoloy 825 Forgings features nickel (38–46%), chromium (19.5–23.5%), iron, molybdenum (2.5–3.5%), copper (1.5–3%), and titanium (0.6–1.2%). This thoughtfully balanced mix grants remarkable resistance to sulfuric and phosphoric acids, as well as protection against pitting, crevice corrosion, and stress-corrosion cracking. The alloy also maintains impressive mechanical properties at both room and elevated temperatures, ensuring stability and longevity even in the harshest service conditions.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

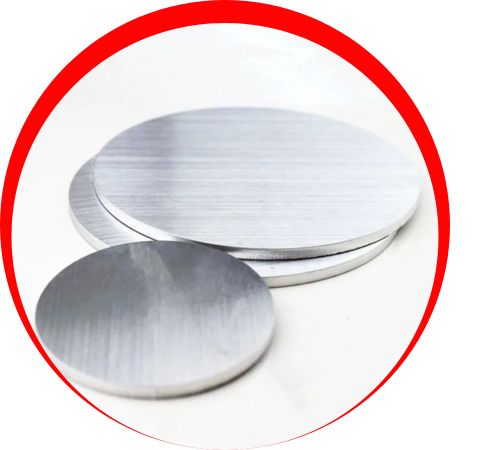

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

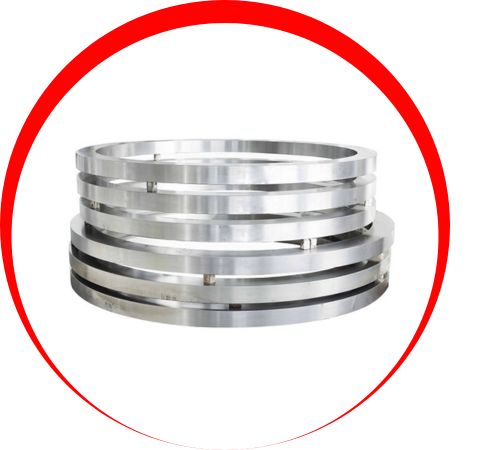

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

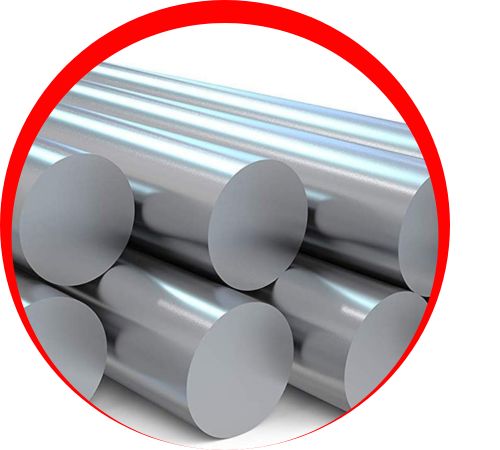

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
At Russ Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Forgings in Manila, Philippines, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Philippines, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy 825 Forgings find extensive applications across the chemical processing, marine, oil and gas, and pollution control sectors. They are particularly well-suited for creating components like flanges, shafts, valve bodies, and fittings that operate in corrosive and high-temperature settings. Thanks to their exceptional corrosion resistance and mechanical strength, these forgings are the go-to choice for projects involving aggressive chemicals and high-pressure scenarios. Incoloy 825 Forgings promise a long service life, dependable operation, and top-notch performance in demanding industrial environments.
