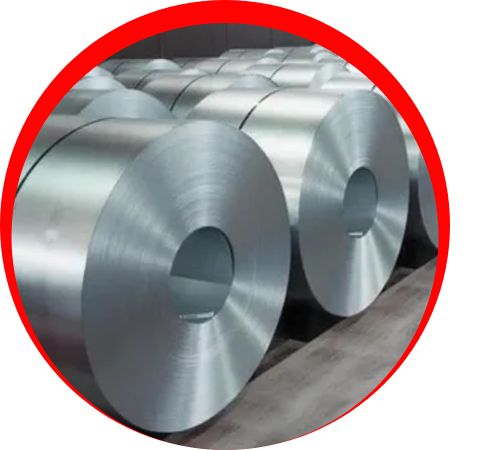

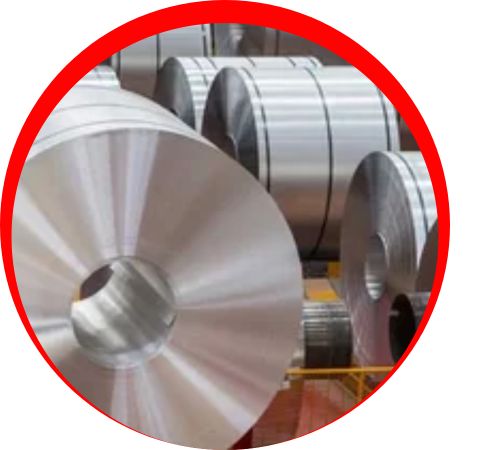

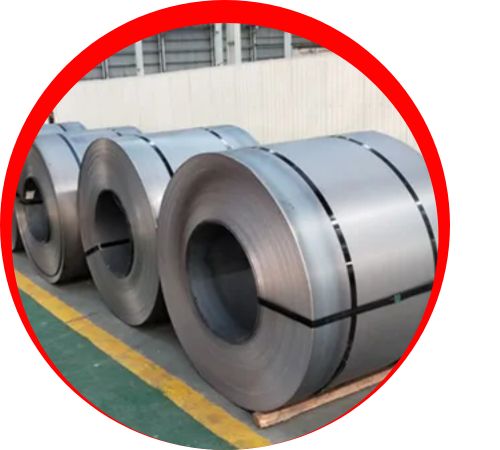

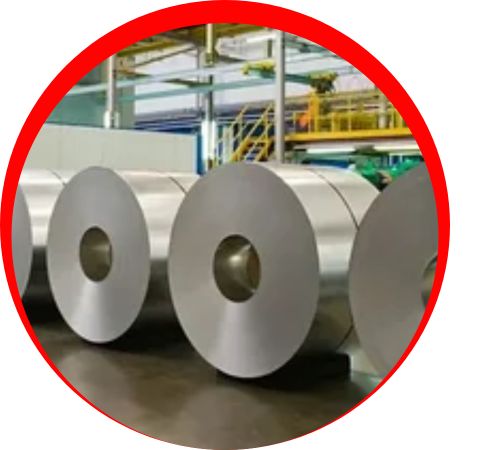

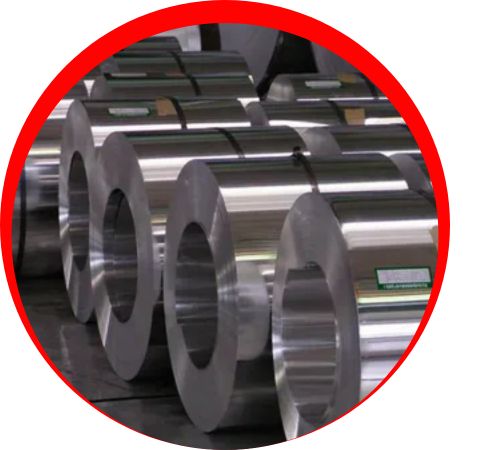

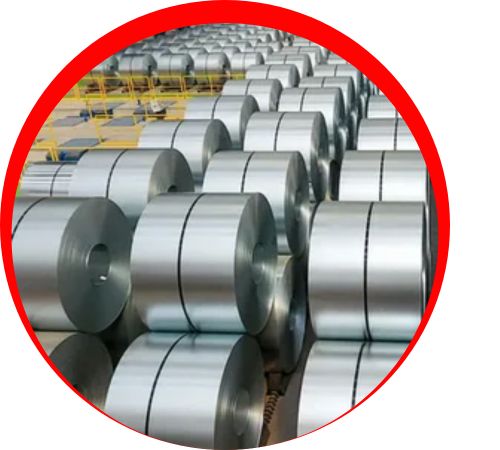

Russ Nickel Alloys, the leading manufacturer and distributor in Manila, Philippines, specializes in high-quality Duplex Steel S32205 Coils. Known for their superior strength, excellent corrosion resistance, and durability, these coils are ideal for a wide range of industrial applications, including chemical processing, marine, and oil & gas industries. At Russ Nickel Alloys, we pride ourselves on delivering products that meet the highest international standards, ensuring reliability and performance in the most demanding environments. Trust us to provide the best Duplex Steel S32205 Coils, tailored to meet your specific needs.
Standard ASTM A240 / ASME SA240
Range 5mm To 150mm
Width 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Surface Finishing Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32205 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
The Duplex Steel S32205 coils from Russ Nickel Alloys are composed of about 22% chromium, 5-6% nickel, and 3% molybdenum, along with balanced amounts of nitrogen and manganese. This specific composition grants exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy boasts impressive mechanical strength, with a yield strength of around 450 MPa and a tensile strength that can reach up to 620 MPa. Its dual-phase microstructure provides outstanding toughness and ductility, even in sub-zero temperatures. These features make Duplex S32205 coils a fantastic option for applications that demand both corrosion resistance and structural integrity.
Contact us to get a quick quote for your requirement.
Russ Nickel Alloys’ Duplex Steel S32205 Coils are extensively utilized in various high-stress and corrosive settings. You can often find these coils in chemical processing plants, offshore oil rigs, desalination facilities, and marine engineering projects, thanks to their remarkable resistance to chloride-induced corrosion. They are also perfect for heat exchangers, pressure vessels, storage tanks, and structural components in bridges and buildings. In the Philippines, industries facing coastal exposure and high humidity greatly benefit from the durability and longevity of S32205 coils. Plus, their impressive strength-to-weight ratio makes them an excellent choice for a wide range of applications.
