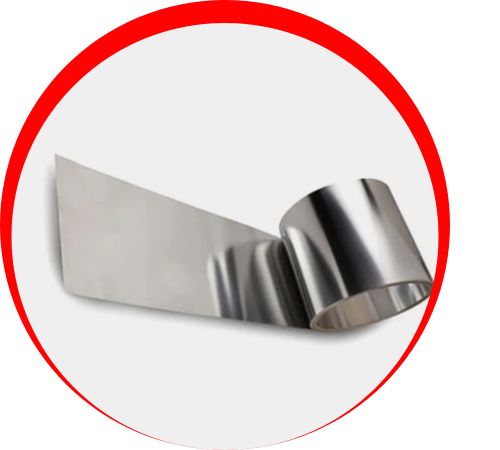

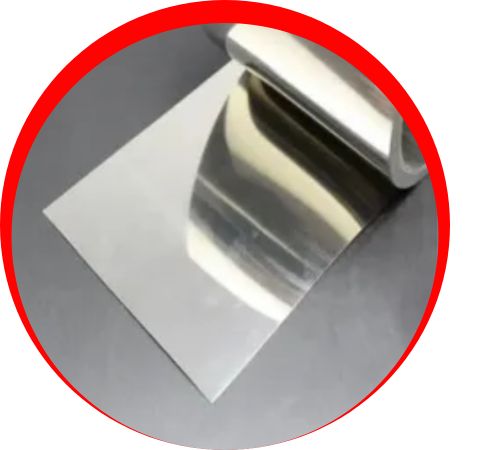

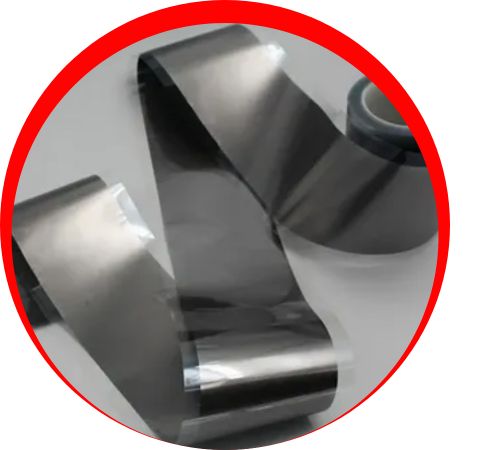

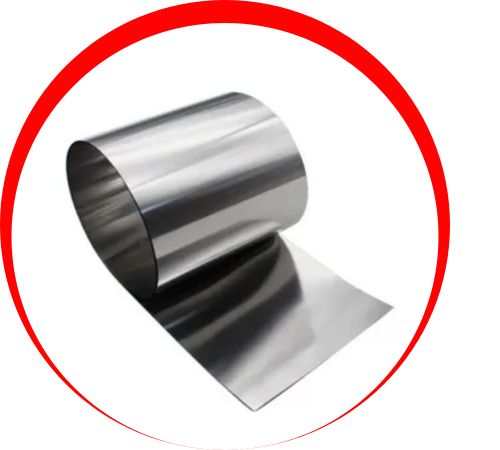

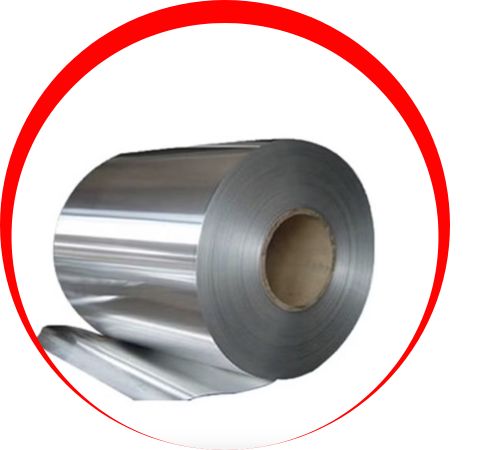

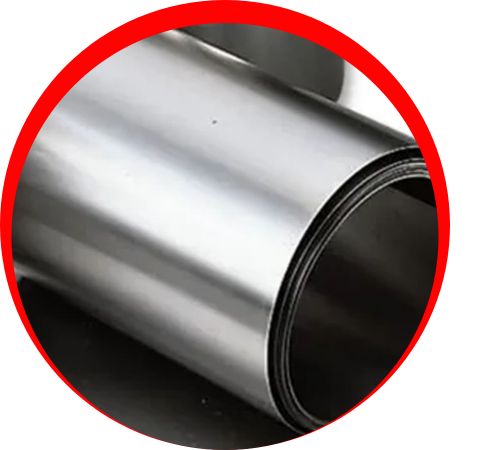

Russ Nickel Alloys is a leading manufacturer and supplier of high quality steel in Manila, Philippines. We specialize in a wide range of materials, offering unique materials such as Alloy C263 foil, which is known for its high temperature and excellent corrosion resistance. Our alloy C263 foil is widely used in industries such as aerospace, chemical processing and power generation. With a commitment to quality and customer satisfaction, we offer reliable, robust and cost-effective solutions to meet your specific compounding needs.
Russ Nickel Alloys, located in Manila, Philippines, is a trusted name in the manufacturing and supply of top-notch welding consumables. They specialize in AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod. With a strong focus on quality, precision, and durability, this company serves a diverse array of industries that need reliable welding solutions for high-temperature and corrosion-resistant applications. Russ Nickel Alloys takes pride in delivering expertly crafted filler materials that adhere to international standards, making them a go-to partner for welding professionals in fields like aerospace, power generation, chemical processing, and marine engineering throughout the Philippines and beyond.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
The AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod are primarily made of nickel (Ni), with notable amounts of chromium (Cr) at 20–23%, cobalt (Co) at 10–15%, and molybdenum (Mo) at 8–10%. This well-thought-out composition provides exceptional mechanical strength, with typical tensile strength hitting 760 MPa (110 ksi) and an elongation of about 30%. Designed for outstanding high-temperature stability, corrosion resistance, and weldability, this alloy is perfect for tough environments. Its performance ensures structural integrity even under extreme thermal conditions, offering a long service life in critical industrial applications.
Contact us to get a quick quote for your requirement.
These AWS Class ERNiCrCoMo-1 MIG and TIG Filler Welding Wire and Rod are commonly used for welding nickel-based alloys like Alloy 617 and other high-temperature materials. They are vital in industries that demand excellent resistance to oxidation, carburization, and corrosion, especially at temperatures above 1000°C. Typical applications include gas turbines, heat exchangers, furnace components, reformer tubes, and pressure vessels in power plants, petrochemical facilities, and aerospace settings. Their remarkable metallurgical properties and reliability under intense stress make them a top choice for both fabrication and repair.
